Bryan S. Leaman - Chevy K1500 4x4 Page

1990 Chevy K1500
Photos

Here is a small gallery of photos. Click on the thumbnail image for the full-size version.

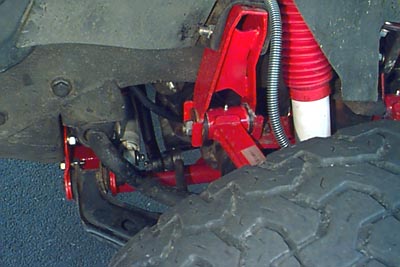

Close-up of the front suspension (driver side). I'll have a better picture when I get a chance to take the wheels off.

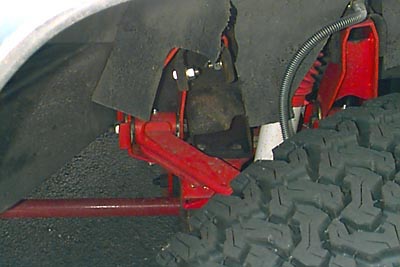

Close-up of the front suspension (passenger side). You can also see the Rancho torsion bar.

1.5" lift blocks plus a Rancho Add-A-Leaf. The shocks are Rancho 9000 5-way adjustable.

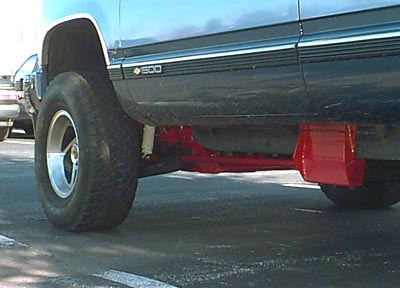

Rancho torsion bars with drop-brackets for the crossmember.

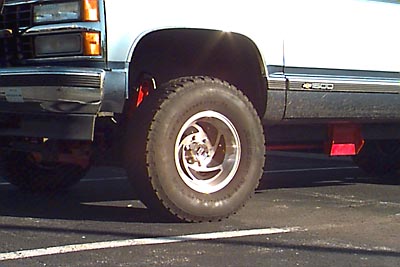

Good photo to show the height and amount of tire clearance in the front (those are 32" tires, not 33").

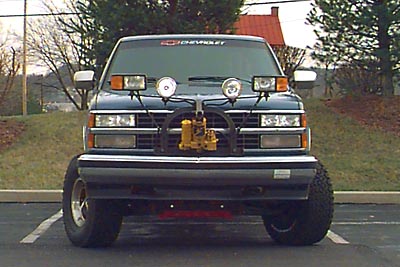

Looking towards the front grille. You can see part of the Rancho sub-frame behind the snow plow mount. Also note how the control arms are almost parallel to the ground.

Looking towards the front from the driver-side rear of the truck.

Last Updated: 1/22/98
